Specificaties
Fasen
Eenfasig
Nominaal vermogen
7,4kW
Aantal
4
Gewicht
11kg
Fasen
Driefasig
Nominaal vermogen
11 kW ( Maximaal 22kW )
Beschermingsklasse
IP54
Garantie
10 jaar
Maximaal uitgangsvermogen per stopcontact
3,6kW
Levensduur
15 jaar
Downloads
Leveringsomvang
Power Dock
Specificaties
Capaciteit
2688Wh
Max. PV-ingangsvermogen
3600W
Netgekoppelde AC-uitgang
800W
Maximaal AC-laadvermogen
1200W
Nominaal vermogen (enkel apparaat)
1800W
Productlevensduur & garantie
15 jaar; 10 jaar
Beschermingsklasse
IP65
Connectiviteit
Bluetooth, Wi-Fi (2.4GHz)
Bedrijfstemperatuurbereik
-20°C ~ 55°C
Afmetingen
460 × 254 × 279mm
Nettogewicht
29,2kg
Batterijtype
LiFePO4
Bedrijfsspanningsbereik
16-60 V DC
Maximale PV-ingangsstroom
32 A DC
Downloads
Leveringsomvang

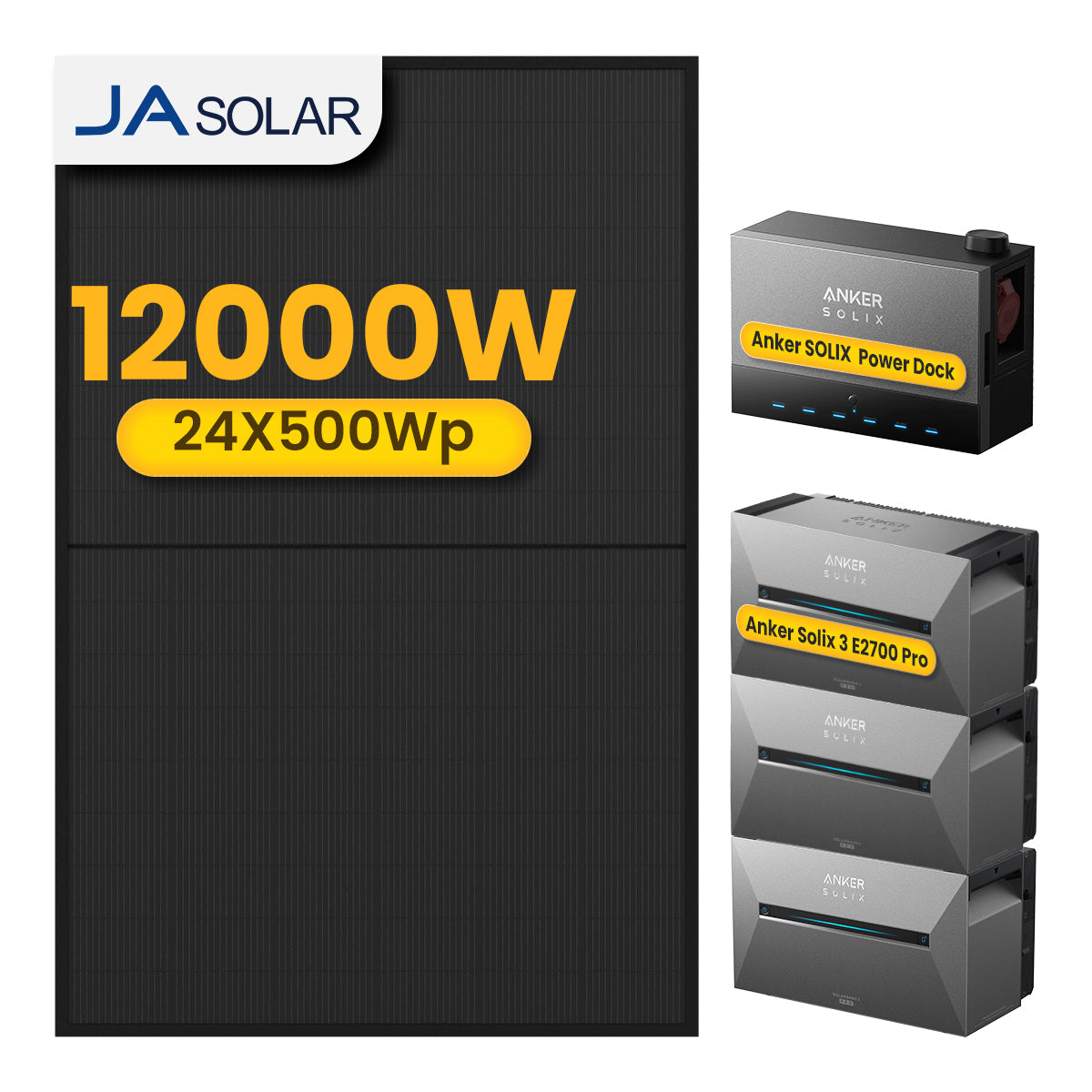

Solarbank 3 E2700 Pro
1× 3m Schuko-verbindingskabel
Sleutel voor het verwijderen van de PV-stekker
Specificaties
Max. aanbevolen DC-vermogen
500 Wp
Module-efficiëntie
22,6 %
Aantal cellen
120
Celtype
monokristallijn
Kabellengte
1200 mm (+) / 1200 mm (-)
Stekkersysteem
MC4-EVO2A
Afmetingen module
1953×1134×30mm
Gewicht
27.3 kg
Drukbelasting voorzijde
5400 Pa
Drukbelasting achterzijde
2400 Pa
Downloads
Leveringsomvang
JA Solar 500Wp Full Black Bifaciaal Zonnepaneel
Specificaties
Merk / Fabrikant
Sunpro Power
Celtype
N-type monokristallijne TOPCon-cellen
Modelnaam
SPDG500-N108R12, 500 Wp N-Typ TOPCon
Maximaal vermogen (Pmax)
500W
Module-efficiëntie
22,5%
Aantal cellen
108
Kabellengte
ca. 1100 mm
Stekkersysteem
MC4-compatibele stekkers
Afmetingen module
1960 × 1134 × 30 mm
Gewicht
26,6 kg
Drukbelasting voorzijde
tot 5400 Pa
Drukbelasting achterzijde
tot 2400 Pa
Downloads
Leveringsomvang
500Wp Bifaciaal Full Black SUNPRO Zonnepaneel
